DUW-584
58.4"
3840 × 1080 · 32:9
Flagship — highest resolution in the DUW series. Ceiling-suspended.
Luminance700 cd/m²
InstallCeiling-suspended
Power160 W
— 01 / Series
Every DUW monitor shares a unified hardware architecture — marine-grade aluminium, fanless thermal design, and the same control interface across the entire series.
⬛⬜
Ultra-Wide 32:9
Multi-window navigation and chart display on a single screen.
— Panel format
◑
High Brightness
700 – 1,500 cd/m² depending on model. Anti-Glare 3H surface.
— Luminance
⬡
Marine-Grade Aluminium
Fanless aluminium enclosure for vibration, salt, and thermal loads.
— Housing
⊞
Picture-by-Picture
Display two independent video sources simultaneously, all models.
— PBP
⇄
Multiple Video Inputs
HDMI ×2, DisplayPort ×2, VGA ×1 on every model in the series.
— Inputs
⌁
DRCU-8B Remote
Optional panel-mount remote control unit — power, brightness, input and PBP over RS-485.
— Accessory
▲
Alarm Buzzer
Dual front-mounted buzzers for audible alert and warning indication.
— Alarm
◈
Wide Env. Range
0 – 55 °C operating temperature. Up to 95% relative humidity.
— Environment
— 02 / Lineup
Four models
One system
DUW-495
49.5"
1920 × 540 · 32:9
Compact ultra-wide for bridge consoles. Ceiling-suspended.
Luminance700 cd/m²
InstallCeiling-suspended
Power150 W
DUW-370
37"
1920 × 540 · 32:9
High-brightness 1,500 cd/m² for demanding ambient light. VESA mount.
Luminance1,500 cd/m²
InstallVESA Mount
Power100 W
DUW-286
28.6"
1920 × 540 · 32:9
Compact bridge display for space-constrained console installations.
Luminance700 cd/m²
InstallVESA Mount
Power60 W
— 03 / Comparison
Specify the right model
| Specification | DUW-58458.4″ · Flagship | DUW-49549.5″ | DUW-37037″ | DUW-28628.6″ |
|---|---|---|---|---|
| Resolution | 3840 × 1080 | 1920 × 540 | 1920 × 540 | 1920 × 540 |
| Luminance | 700 cd/m² | 700 cd/m² | 1,500 cd/m² | 700 cd/m² |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Response Time | 8 ms | 8 ms | 8 ms | 8 ms |
| Viewing Angle | 178° all | 178° all | 178° all | 178° all |
| Video Input | HDMI×2, DP×2, VGA | HDMI×2, DP×2, VGA | HDMI×2, DP×2, VGA | HDMI×2, DP×2, VGA |
| PBP | ✓ | ✓ | ✓ | ✓ |
| RS-485 | ✓ | ✓ | ✓ | ✓ |
| Power (max) | 160 W | 150 W | 100 W | 60 W |
| Dimensions | 1510×528×94 mm | 1290×466×94 mm | 959×350×90 mm | 754×294×85.6 mm |
| Weight | 22.5 kg | 20.0 kg | 16.0 kg | 12.0 kg |
| IP Rating | IP 22 | IP 22 | IP 22 | IP 22 |
| Installation | Ceiling-suspended | Ceiling-suspended | VESA Mount | VESA Mount |
| Operating Temp | 0 – 55 °C | 0 – 55 °C | 0 – 55 °C | 0 – 55 °C |
— 04 / DUW-584

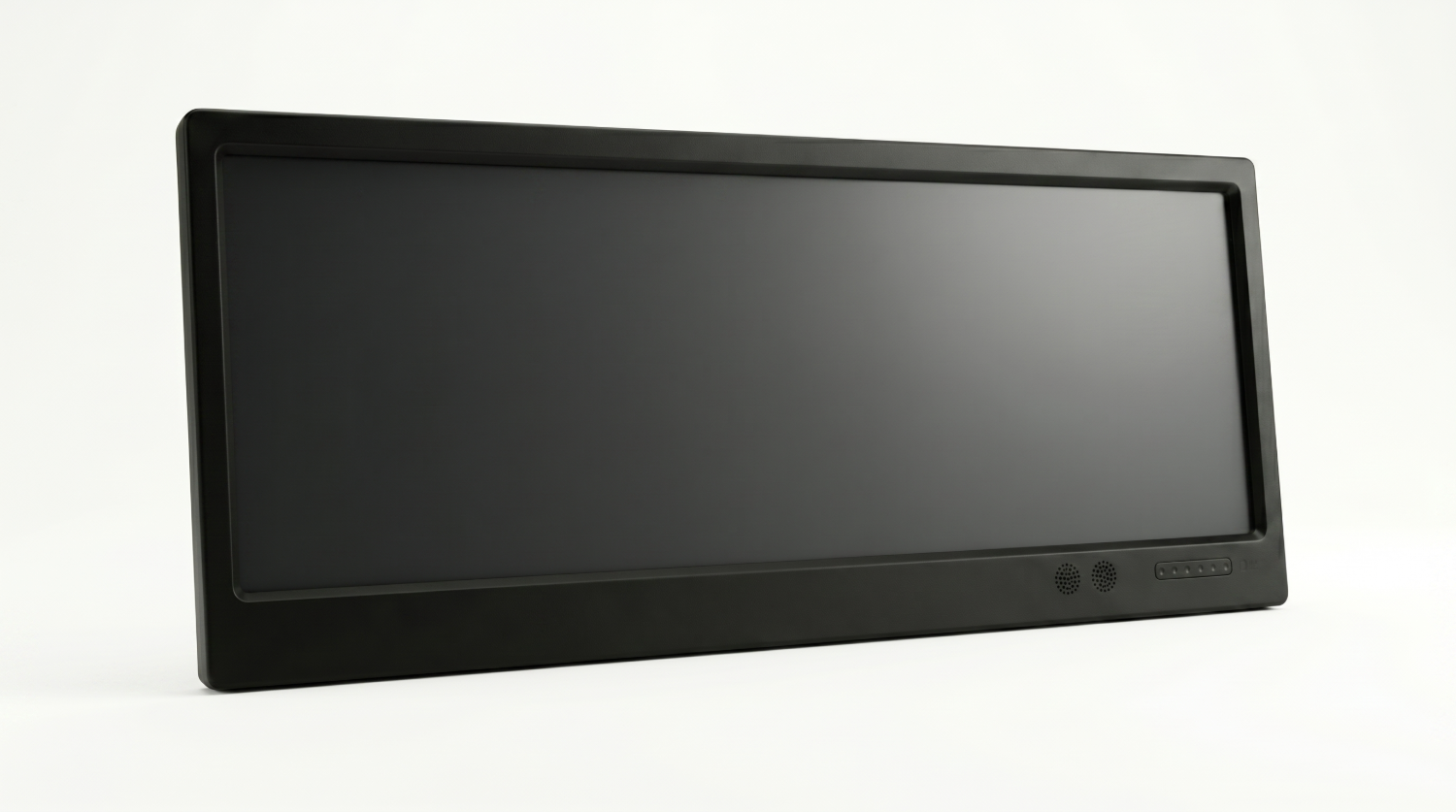

DUW-584
Flagship
58.4″ · 3840 × 1080 · Ceiling-suspended
The flagship of the DUW Series — DELTIS's largest and highest-resolution bridge monitor. At 58.4 inches and 3840 × 1080, it delivers true ultra-wide resolution for navigation, chart overlay, and integrated console views on a single panel. Ceiling-suspended.
Display Size
58.4 inch
Resolution
3840 × 1080
Aspect Ratio
32:9
Luminance
700 cd/m²
Contrast Ratio
4000:1
Response Time
8 ms
Viewing Angle
89°/89°/89°/89°
Color Gamut
NTSC 72%
Frame Rate
60 Hz
Surface
Anti-Glare, 3H
Video Input
HDMI ×2 · DP ×2 · VGA ×1
Communication
RS-485
Power Input
AC 110–240 V, 50/60 Hz
Power (max)
160 W
Dimensions
1510 × 528 × 94 mm
Weight
22.5 kg
Housing
Aluminium
IP Rating
IP 22
Operating
0 ~ 55 °C, 95% RH
Installation
Ceiling-suspended
— 05 / DUW-495
DUW-495
49.5 inches
1920 × 540 · Ceiling-suspended
The 49.5-inch model — a compact ultra-wide display suited for integrated bridge console monitoring. OSD keypad and RS-485 remote control standard.
Display Size
49.5 inch
Resolution
1920 × 540
Aspect Ratio
32:9
Luminance
700 cd/m²
Contrast Ratio
4000:1
Response Time
8 ms
Viewing Angle
89°/89°/89°/89°
Color Gamut
sRGB 72%
Frame Rate
60 Hz
Surface
Anti-Glare, 3H
Video Input
HDMI ×2 · DP ×2 · VGA ×1
Communication
RS-485
Power Input
AC 110–240 V, 50/60 Hz
Power (max)
150 W
Dimensions
1290 × 466 × 94 mm
Weight
20.0 kg
Housing
Aluminium
IP Rating
IP 22
Operating
0 ~ 55 °C, 95% RH
Installation
Ceiling-suspended
— 06 / DUW-370

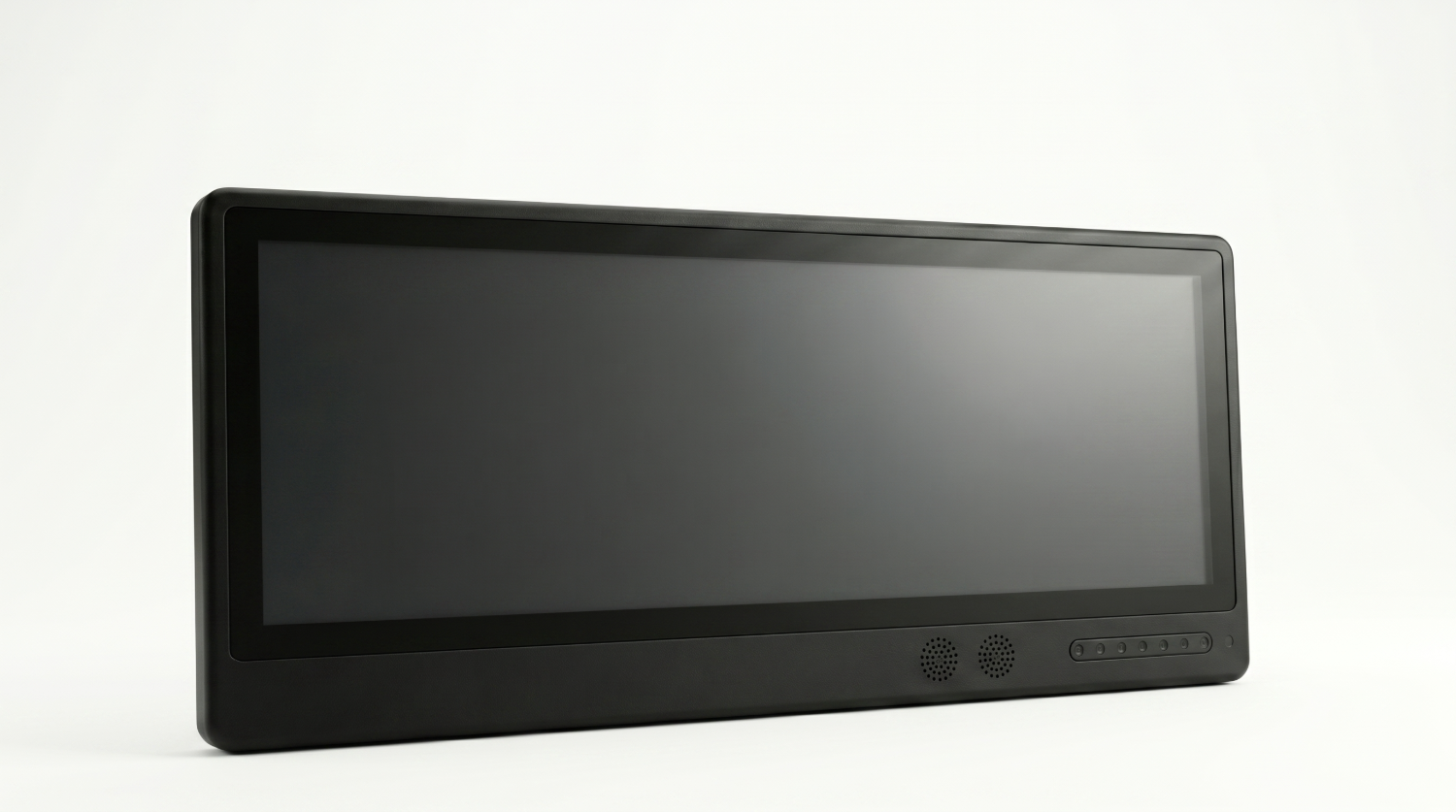

DUW-370
High Brightness
37″ · 1,500 cd/m² · VESA Mount
The high-brightness standout of the DUW Series — at 1,500 cd/m² it is more than twice as bright as the rest of the lineup. Suited for bridge environments with strong ambient light or direct sunlight ingress. VESA bracket mounting.
Display Size
37 inch
Resolution
1920 × 540
Aspect Ratio
32:9
Luminance
1,500 cd/m²
Contrast Ratio
4000:1
Response Time
8 ms
Viewing Angle
89°/89°/89°/89°
Color Gamut
NTSC 72%
Frame Rate
60 Hz
Surface
Anti-Glare, 3H
Video Input
HDMI ×2 · DP ×2 · VGA ×1
Communication
RS-485
Power Input
AC 110–240 V, 50/60 Hz
Power (max)
100 W
Dimensions
959 × 350 × 90 mm
Weight
16.0 kg
Housing
Aluminium
IP Rating
IP 22
Operating
0 ~ 55 °C, 95% RH
Installation
VESA Mount
— 07 / DUW-286
DUW-286
Compact
28.6″ · VESA Mount · 12 kg
The most compact model in the DUW Series — a 28.6-inch ultra-wide display for installations where space at the console is limited but ultra-wide viewing is still required. At 12 kg and VESA-mountable, it offers the greatest installation flexibility across the bridge.
Display Size
28.6 inch
Resolution
1920 × 540
Aspect Ratio
32:9
Luminance
700 cd/m²
Contrast Ratio
4000:1
Response Time
8 ms
Viewing Angle
89°/89°/89°/89°
Color Gamut
NTSC 72%
Frame Rate
60 Hz
Surface
Anti-Glare, 3H
Video Input
HDMI ×2 · DP ×2 · VGA ×1
Communication
RS-485
Power Input
AC 110–240 V, 50/60 Hz
Power (max)
60 W
Dimensions
754 × 294 × 85.6 mm
Weight
12.0 kg
Housing
Aluminium
IP Rating
IP 22
Operating
0 ~ 55 °C, 95% RH
Installation
VESA Mount
— 08 / Environmental
Marine-grade reliability
IP 22
Ingress protection
0 – 55°C
Operating temperature
95 %
Max operating humidity
−20°C
Storage temp minimum
60°C
Storage temp maximum
Al
Marine-grade aluminium
